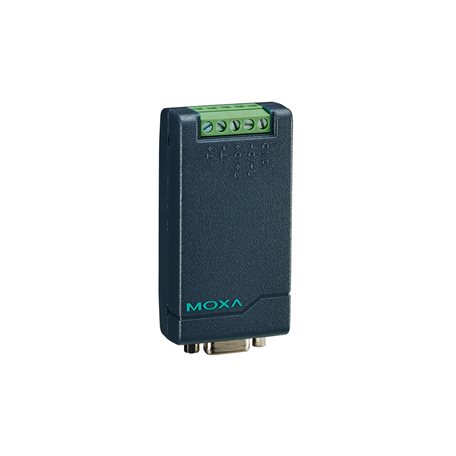

The Moxa TCC-80 is a port-powered RS-232 to RS-422/485 converter with 15 kV serial ESD protection and terminal block on the RS-422/485 side.
Key specifications
| Product Type | Serial-to-Serial Converters |
|---|---|
| Conversion | RS-232 to RS-422/485 (port-powered) |
| Serial Standards | RS-232, RS-422, RS-485 |
| Serial Connector | Terminal block |
| Baudrate | 300 bps to 115.2 kbps |
| Operating Temperature | 0 to 60°C |
| Power Input | Port-powered from RS-232 lines; optional external 5 to 12 VDC |
Features and Benefits
- External power source supported but not required
- Compact size
- Converts RS-422, and both 2-wire and 4-wire RS-485
- RS-485 automatic data direction control
- Automatic baudrate detection
- Built-in 120-ohm termination resistors
- LED port power indicator
