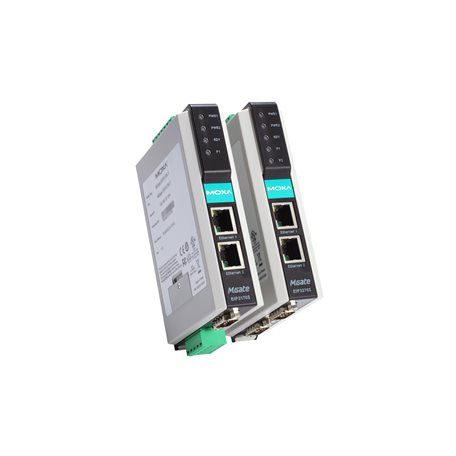

The Moxa MGate EIP3170-T is a 1-port EtherNet/IP-to-DF1 gateway, -40 to 75°C operating temperature.
Key specifications
| Product Type | EtherNet/IP Gateways |
|---|---|
| Ethernet Protocols | Ethernet/IP (PCCC) |
| Serial Protocols | DF1 |
| Serial Ports | 1 |
| Serial Standards | RS-232, RS-422 |
| Serial Connector | DB9 male for RS-232; Terminal block for RS-422/485 |
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
| Operating Temperature | -40 to 75°C |
| Input Voltage | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx, DNV |
Features and Benefits
- PCCC objects for Rockwell Automation networks supported
- Use ProCOM to implement control via COM port mapping
- 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
- Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
- EtherNet/IP and DF1 protocol analyzer for easy troubleshooting
- Redundant dual DC power inputs
- Built-in Ethernet cascading for easy wiring
- -40 to 75°C wide operating temperature models available
