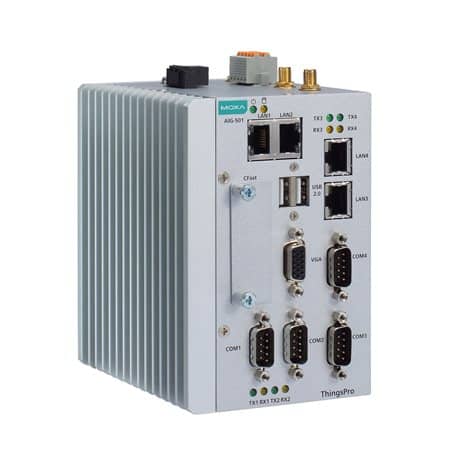

The Moxa AIG-501-T-AP-AZU-LX isa 4-port Modbus to Azure advanced IIoT gatewaywith Intel Atom® E3845 quad-core 1.91 GHz, LTE Cat. 4 preinstalled (Asia Pacific), -40 to 70°C operating temperature.
Key specifications
| CPU | Intel Atom® E3845 quad-core 1.91 GHz |
|---|---|
| Operating System | Linux Debian 9 (kernel 4.9) |
| DRAM | 4 GB DDR3L |
| Storage | 32 GB CFast eMMC |
| Ethernet Ports | 4 x 10/100/1000 Mbps RJ45 |
| Serial Ports | 4 x RS-232/422/485 |
| Wireless / Cellular | LTE Cat. 4 preinstalled (Asia Pacific) |
| Field I/O | 4 DI / 4 DO |
| Cloud / Protocols | Modbus RTU/ASCII/TCP; MQTT; Azure IoT Device / Edge; AWS IoT Core; ThingsPro Proxy |
| Tags Supported | 4096 |
| TPM | TPM v2.0 |
| Operating Temperature | -40 to 70°C |
Features and Benefits
- Intel Atom® E3845 with Azure IoT Edge preloaded
- ThingsPro Proxy utility for easy device provisioning
- 4 Gigabit Ethernet ports; 4 serial ports
- TPM v2.0; up to 4096 tags
