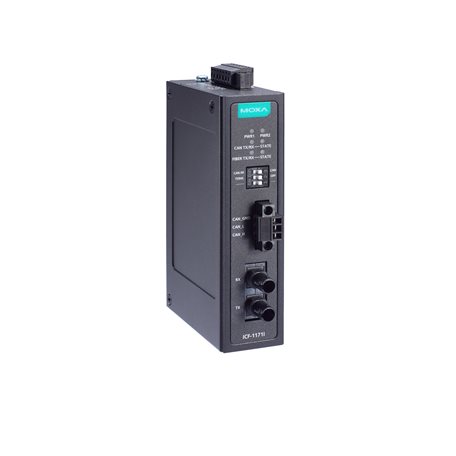

The Moxa ICF-1171I-S-ST-T is an industrial CAN-to-fiber converter for distance extension, ST single-mode, -40 to 75°C.
Key specifications
| Product Type | Fieldbus-to-Fiber Converters |
|---|---|
| Conversion | CAN / CAN FD to fiber |
| CAN Port | 1 (CAN 2.0A, CAN 2.0B, CAN FD) |
| Fiber | Single-mode ST, 1310 nm, 40 km typical |
| Isolation | 2 kV |
| Operating Temperature | -40 to 75°C |
| Power Input | 12 to 48 VDC |
Features and Benefits
- Transmits data for up to 40 km over optical fiber
- Converts CAN signals to fiber and vice versa
- Supports CAN 2.0A, CAN 2.0B, and CAN FD; conforms with the ISO 11898 standard
- CAN 2.0 supports auto-baudrate
- CAN 2.0 arbitration rate up to 1 Mbps
- CAN FD arbitration rate up to 1 Mbps; data rate up to 5 Mbps
- Dual power inputs for redundancy
- Wide-temperature model available for -40 to 75°C environments
- DIP switch for 120-ohm terminal resistance
- Rotary switches for CAN 2.0/CAN FD arbitration and data rate configuration
- LEDs for CAN bus diagnostics, fiber diagnostics, and power input status
