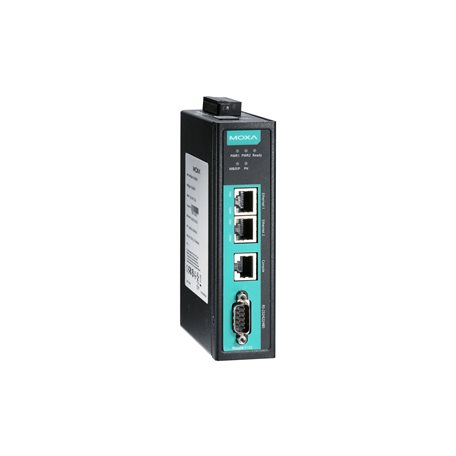

The Moxa MGate 5103 is a 1-port Modbus/EtherNet/IP-to-PROFINET gateway, 0 to 60°C operating temperature.
Key specifications
| Product Type | PROFINET Gateways |
|---|---|
| Ethernet Protocols | PROFINET IO Device, Modbus TCP Client/Server, EtherNet/IP Adapter |
| Serial Protocols | Modbus RTU/ASCII Master/Slave |
| Serial Ports | 1 |
| Serial Standards | RS-232/422/485, 2 kV isolation |
| Serial Connector | DB9 male |
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
| Operating Temperature | 0 to 60°C |
| Input Voltage | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx |
Features and Benefits
- Supports PROFINET IO devices
- Supports Modbus RTU/ASCII/TCP master/slave configurations
- Effortless configuration via web-based wizard
- Supports EtherNet/IP Adapter
- Complete diagnosis information for maintenance
- Embedded Modbus traffic monitoring
- microSD card for configuration backup and event logs
- Modbus port with 2 kV built-in isolation protection
- Built-in Ethernet cascading for easy wiring
- Security based on IEC-62443
