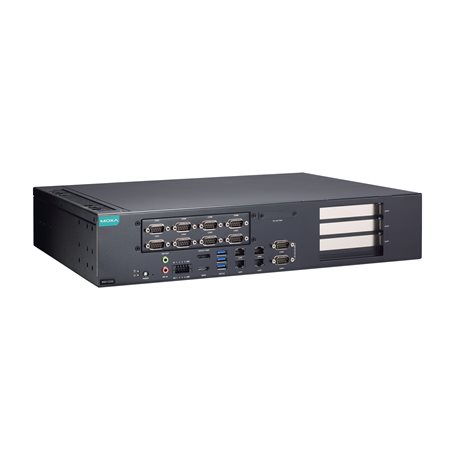

The Moxa RKP-C220-C5-2CB6C-T is a 2u rackmount industrial computer with Intel® Core™ i5-13500TE, 2 x GbE + 2 x 2.5GbE, 6 x RS-232/422/485 + CAN, -30 to 60°C operating temperature.
Key specifications
| CPU | Intel® Core™ i5-13500TE |
|---|---|
| Supported OS | Windows 10 IoT Enterprise LTSC 2021 64-bit; Windows 11 IoT Enterprise LTSC 2024 64-bit; Windows 11 Professional 64-bit; Windows Server 2022 (drivers); Debian 12 (kernel 6.10) drivers |
| DRAM | 8 GB DDR4 (up to 64 GB) |
| Storage | 2 x 2.5-inch SSD slots (RAID 0/1); M.2 expansion |
| Ethernet Ports | 2 x GbE + 2 x 2.5GbE |
| Serial Ports | 6 x RS-232/422/485 + CAN |
| Video Outputs | HDMI 2.0b x 1; DisplayPort 1.2 x 1 |
| Digital I/O | 4 DI / 4 DO |
| TPM | TPM v2.0 |
| Expansion | PCIe x16 (Gen 4, GPU); PCIe x8 (4-lane); PCIe x1 |
| Operating Temperature | -30 to 60°C |
Features and Benefits
- 2U Raptor Lake-S rackmount computer
- PCIe expansion including GPU-capable x16 slot
- Up to 8 LAN / 10 serial / CAN depending on model
- TPM 2.0; -30 to 60°C
