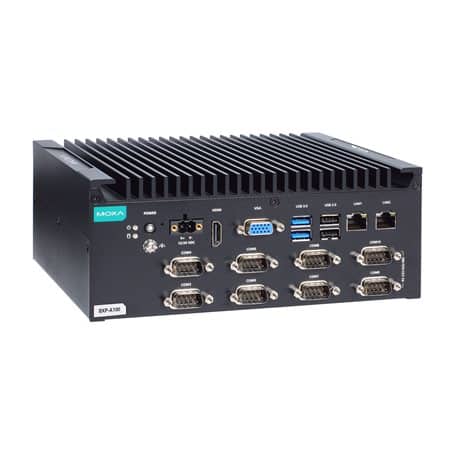

The Moxa BXP-A100-E2-8C-T is a box industrial computer with Intel Atom® x6211E dual-core 1.30 GHz, 2 x GbE, 10 x RS-232/422/485, -30 to 60°C operating temperature.
Key specifications
| CPU | Intel Atom® x6211E dual-core 1.30 GHz |
|---|---|
| Supported OS | Windows 11 IoT Enterprise LTSC 2024 64-bit; Windows 11 Professional 64-bit; Windows 10 IoT Enterprise LTSC 2021 64-bit; Debian 12 (kernel 6.1); Debian 11 (kernel 5.10) |
| DRAM | 8 GB DDR4 |
| Storage | CFast slot x 1; SD slot x 1 |
| Ethernet Ports | 2 x GbE |
| Serial Ports | 10 x RS-232/422/485 |
| Video Outputs | HDMI 2.0b x 1; VGA x 1 |
| Digital I/O | 4 DI / 4 DO |
| TPM | TPM v2.0 |
| Certifications | DNV; Class I Division 2; ATEX; IECEx |
| Operating Temperature | -30 to 60°C |
Features and Benefits
- Elkhart Lake Intel Atom® box computer
- Up to 10 LAN or 10 serial ports depending on model
- TPM 2.0; CFast + SD storage
- DNV and hazardous-location certified
