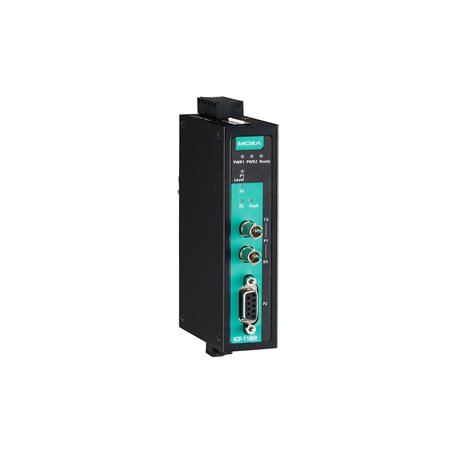

The Moxa ICF-1180I-M-ST is a pROFIBUS to fiber converter, multi-mode, ST connector, 0 to 60°C operating temperature.
Key specifications
| Product Type | Fieldbus-to-Fiber Converters |
|---|---|
| Conversion | PROFIBUS to fiber |
| PROFIBUS Port | 1 x DB9 female, 9600 bps to 12 Mbps |
| Fiber | Multi-mode ST, 820 nm, 4 km typical |
| Isolation | 2 kV |
| Operating Temperature | 0 to 60°C |
| Power Input | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx, DNV |
Features and Benefits
- Record the incoming optical power for later measurement (e.g., to indicate aging or damage).
- Carry out a good/bad test (limit value).
- Fiber-cable test function validates fiber communication
- Auto baudrate detection and data speed of up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Fiber inverse feature
- Warnings and alerts by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy (Reverse power protection)
- Supports Fiber Signal Intensity Diagnosis
