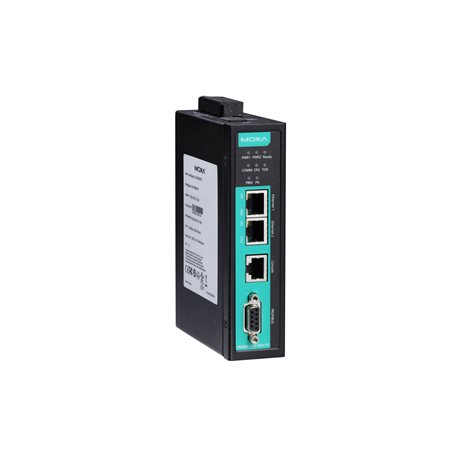

The Moxa MGate 5102-PBM-PN-T is a 1-port PROFIBUS-to-PROFINET gateway, 12 to 48 VDC, -40 to 75°C operating temperature.
Key specifications
| Product Type | PROFINET Gateways |
|---|---|
| Ethernet Protocols | PROFINET IO Device |
| Fieldbus Protocols | PROFIBUS DP-V1 Master |
| PROFIBUS Ports | 1 x DB9 female, 2 kV isolation |
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
| Operating Temperature | -40 to 75°C |
| Input Voltage | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx |
Features and Benefits
- Protocol conversion between PROFIBUS and PROFINET
- Automatic scan of PROFIBUS devices, and easy configuration
- microSD card for configuration backup
- Built-in Ethernet cascading for easy wiring
- Redundant dual DC power inputs and relay output supported
- Embedded I/O monitoring and diagnostic tools
- Web-based GUI for I/O data visualization
- -40 to 75°C wide operating temperature models available
