Name: NPort S8455I-SS-SC
SKU: M_NPort S8455I-SS-SC
Price: 4175.00 AUD
Availability: BackOrder

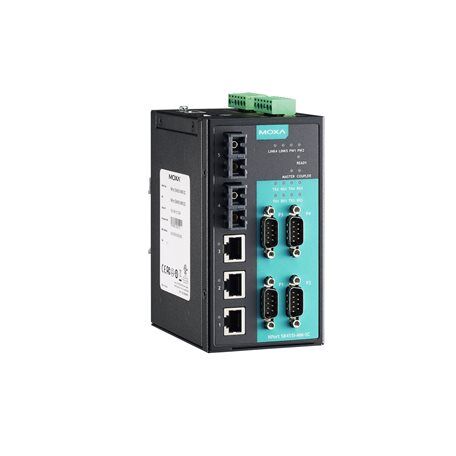

NPort S8455I-SS-SC

4 port device server, RS-232/422/485, 3 port 10/100 Ethernet, 2 port 100M Single mode Fiber, SC connector, 12-48 VDC

SKU: M_NPort S8455I-SS-SC

AU $4175.00 (Excl GST)

~ 4 Weeks

The NPort S8455I-SS-SC from Moxa is a 4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M single-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, 0 to 60°C operating temperature.

4-port RS-232/422/485 serial device server
Serial QoS for configuring serial data transmission priority
2 kV (DC) isolation protection for each serial port (S8455 only)
Adjustable pull high/low resistor for RS-485 ports (S8455 only)
Built-in managed Ethernet switch
S8455I Fiber: Two fiber Ethernet ports and three Ethernet ports
S8455I All Copper: Five Ethernet ports
S8458: Four fiber Ethernet ports and four Ethernet ports
Ethernet redundancy with Turbo Ring and Turbo Chain (recovery time < 20 ms) or RSTP/STP (IEEE 802.1w/D) supported
QoS, IGMP-snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3, RMON supported
Surge protection for serial, power, and Ethernet

Download

Document

Format

Download

Datasheet

PDF

Download

Product Inquiry

Overview

The NPort S8455I-SS-SC from Moxa is a 4 RS-232/422/485 ports, 3 10/100BaseT(X) ports, 2 100M single-mode fiber ports with SC connector, 15 KV ESD, 12 to 48 VDC, 0 to 60°C operating temperature.

4-port RS-232/422/485 serial device server
Serial QoS for configuring serial data transmission priority
2 kV (DC) isolation protection for each serial port (S8455 only)
Adjustable pull high/low resistor for RS-485 ports (S8455 only)
Built-in managed Ethernet switch
S8455I Fiber: Two fiber Ethernet ports and three Ethernet ports
S8455I All Copper: Five Ethernet ports
S8458: Four fiber Ethernet ports and four Ethernet ports
Ethernet redundancy with Turbo Ring and Turbo Chain (recovery time < 20 ms) or RSTP/STP (IEEE 802.1w/D) supported
QoS, IGMP-snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3, RMON supported
Surge protection for serial, power, and Ethernet

Download

Document

Format

Download

Datasheet

PDF

Download
