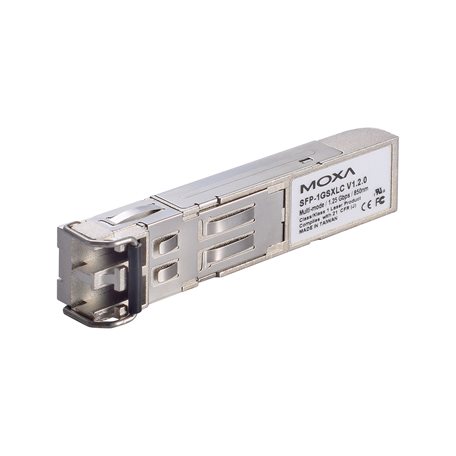

SFP-1GSXLC-T

Small Form Factor pluggable transceiver with 1000BaseSX, LC connector, fiber-dependent reach, -40 to 85°C Typical distance depends on fiber: OM1 300 m; OM2 550 m; OM3/OM4 1 km.

SKU: M_SFP-1GSXLC-T

AU $451.00 (Excl GST)

~ 4 Weeks

-
+



Login to view account price

The SFP-1GSXLC-T from Moxa is a SFP module with 1 1000BaseSX port with LC connector for fiber-dependent transmission, -40 to 85°C operating temperature. Typical distance depends on fiber: OM1 300 m; OM2 550 m; OM3/OM4 1 km.

Key specifications

Module Type SFP
Ethernet Rate 1 Gbps
Media Multi-mode
Connector Duplex LC
Typical Distance 300 m / 550 m / 1 km
Wavelength 850 nm (typ.)
Power Consumption Max. 1 W
Operating Temperature -40 to 85°C
Certifications (Safety) UL 62368-1; IEC 62368-1; IEC 60825-1

Distance by fiber: OM1 300 m; OM2 550 m; OM3/OM4 1 km.

Features and Benefits

  • Digital Diagnostic Monitor Function
  • -40 to 85°C operating temperature range (T models)
  • IEEE 802.3z compliant
  • Differential LVPECL inputs and outputs
  • TTL signal detect indicator
  • Hot pluggable LC duplex connector
  • Class 1 laser product, complies with EN 60825-1
