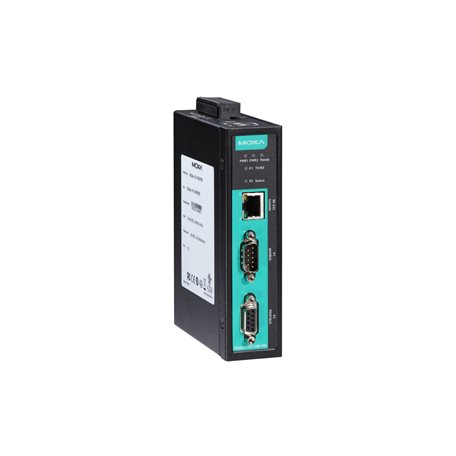

The Moxa MGate 4101I-MB-PBS-T is a 1-port Modbus-to-PROFIBUS Slave gateway with 2 kV isolation, 12 to 48 VDC, -40 to 75°C operating temperature.
Key specifications
| Product Type | Fieldbus Gateways |
|---|---|
| Serial/Fieldbus Protocols | Modbus RTU/ASCII Master/Slave, PROFIBUS DP-V0 Slave |
| Serial Ports | 1 |
| Serial Standards | RS-232/422/485 |
| Serial Connector | DB9 male |
| PROFIBUS Ports | 1 x DB9 female, 2 kV isolation |
| Serial Isolation | 2 kV |
| Operating Temperature | -40 to 75°C |
| Input Voltage | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx |
Features and Benefits
- Protocol conversion between Modbus and PROFIBUS
- Supports PROFIBUS DP V0 slave
- Supports Modbus RTU/ASCII master and slave
- Windows utilities with innovative QuickLink function for automatic configuration within minutes
- Status monitoring and fault protection for easy maintenance
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Supports redundant dual DC power inputs and 1 relay output
- -40 to 75°C wide operating temperature models available
- Serial port with 2 kV isolation protection (for “-I” models)
