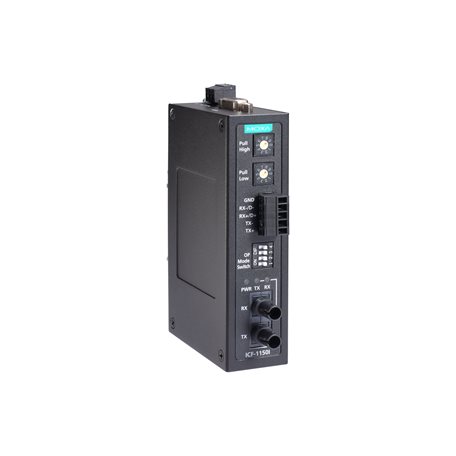

The Moxa ICF-1150I-S-ST-T is an industrial RS-232/422/485 to single-mode fiber converter, ST connector, 2 kV isolation, -40 to 85°C operating temperature.
Key specifications
| Product Type | Serial-to-Fiber Converters |
|---|---|
| Conversion | RS-232/422/485 to fiber |
| Serial Standards | RS-232, RS-422, RS-485 |
| Serial Connector | DB9 female (RS-232), 5-pin terminal block (RS-422/485) |
| Fiber | Single-mode ST, 1310 nm, 40 km typical |
| Baudrate | 50 bps to 921.6 kbps |
| Isolation | 2 kV |
| Operating Temperature | -40 to 85°C |
| Power Input | 12 to 48 VDC |
| Certifications | UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 |
Features and Benefits
- 3-way communication: RS-232, fiber, and RS-422/485
- Rotary switch to change the pull high/low resistor value
- Extends RS-232/422/485 transmission up to 40 km with single-mode fiber
- -40 to 85°C wide temperature range models available
- C1D2 and ATEX certified for harsh industrial environments
