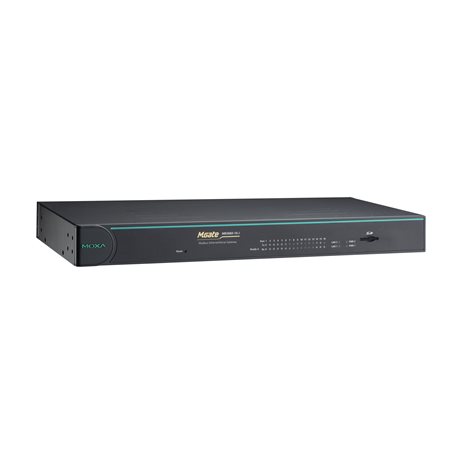

The MGate MB3660-16-2AC from Moxa is a Modbus gateway with dual LANs, dual AC power inputs, 16 RS-232/422/485 ports, 0 to 60°C operating temperature.
- Use the same IP for both Ethernet ports. In this case, the MGate MB3660 gateway will automatically switch to the backup LAN when the main LAN fails.
- Use different IP addresses for each of the two Ethernet ports. In this case, Modbus clients/masters can use both Ethernet ports to communicate with Modbus RTU/ASCII slave devices at the same time.
- Supports Auto Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Innovative Command Learning for improving system performance
- Supports agent mode for high performance through active and parallel polling of serial devices
- Supports Modbus serial master to Modbus serial slave communications
- 2 Ethernet ports with the same IP or dual IP addresses for network redundancy
- SD card for configuration backup/duplication and event logs
- Accessed by up to 256 Modbus TCP clients
- Connects up to 128 Modbus TCP servers
- RJ45 serial interface (for “-J” models)
- Serial port with 2 kV isolation protection (for “-I” models)
- Dual VDC or VAC power inputs with wide power input range
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Status monitoring and fault protection for easy maintenance
