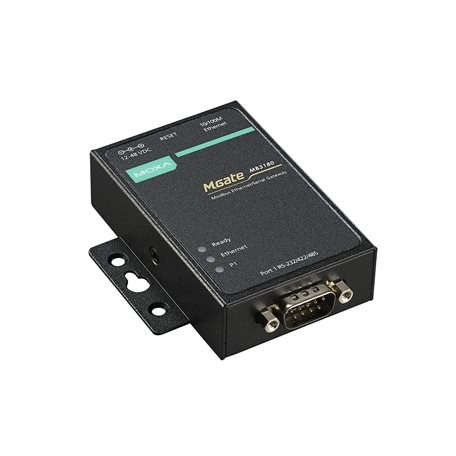

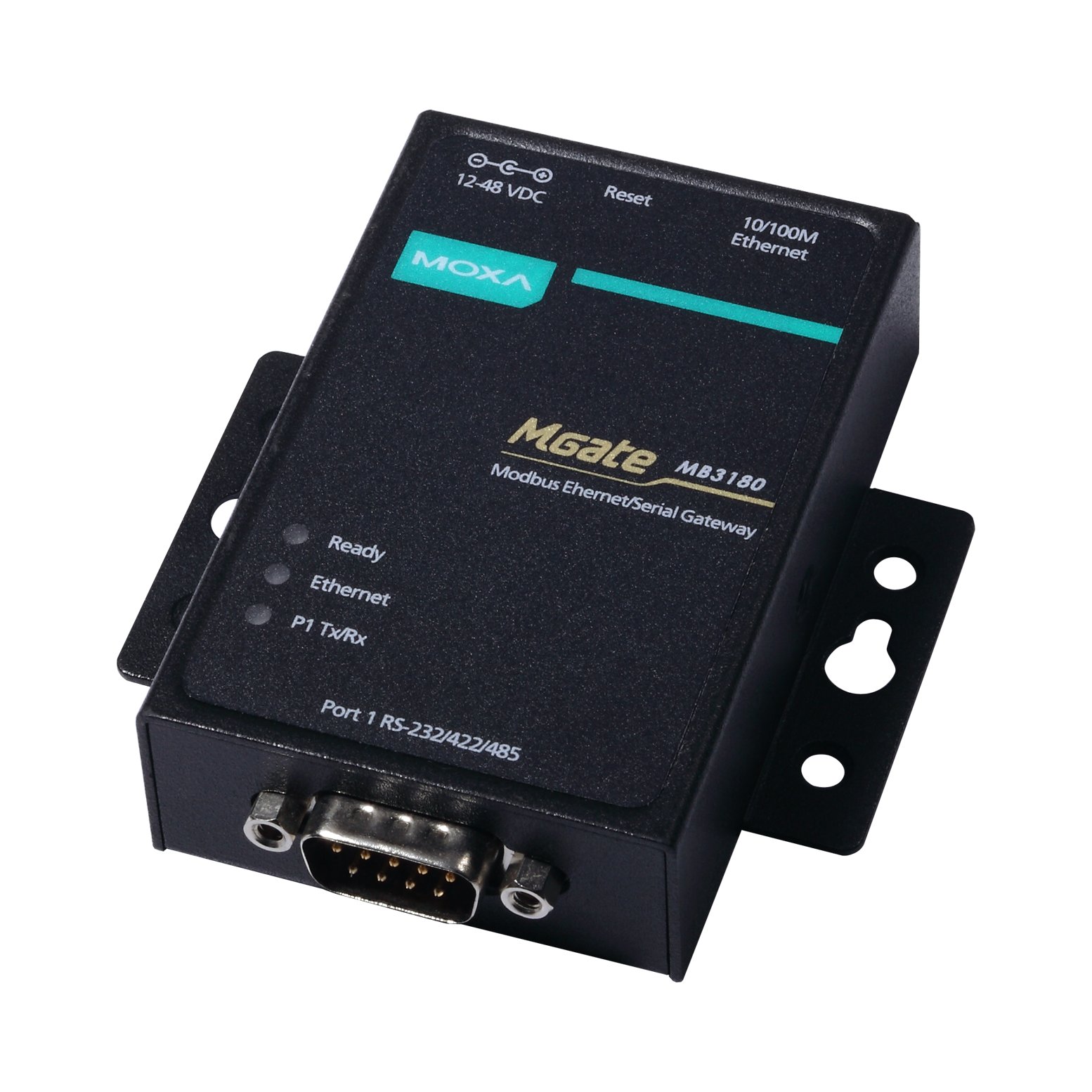

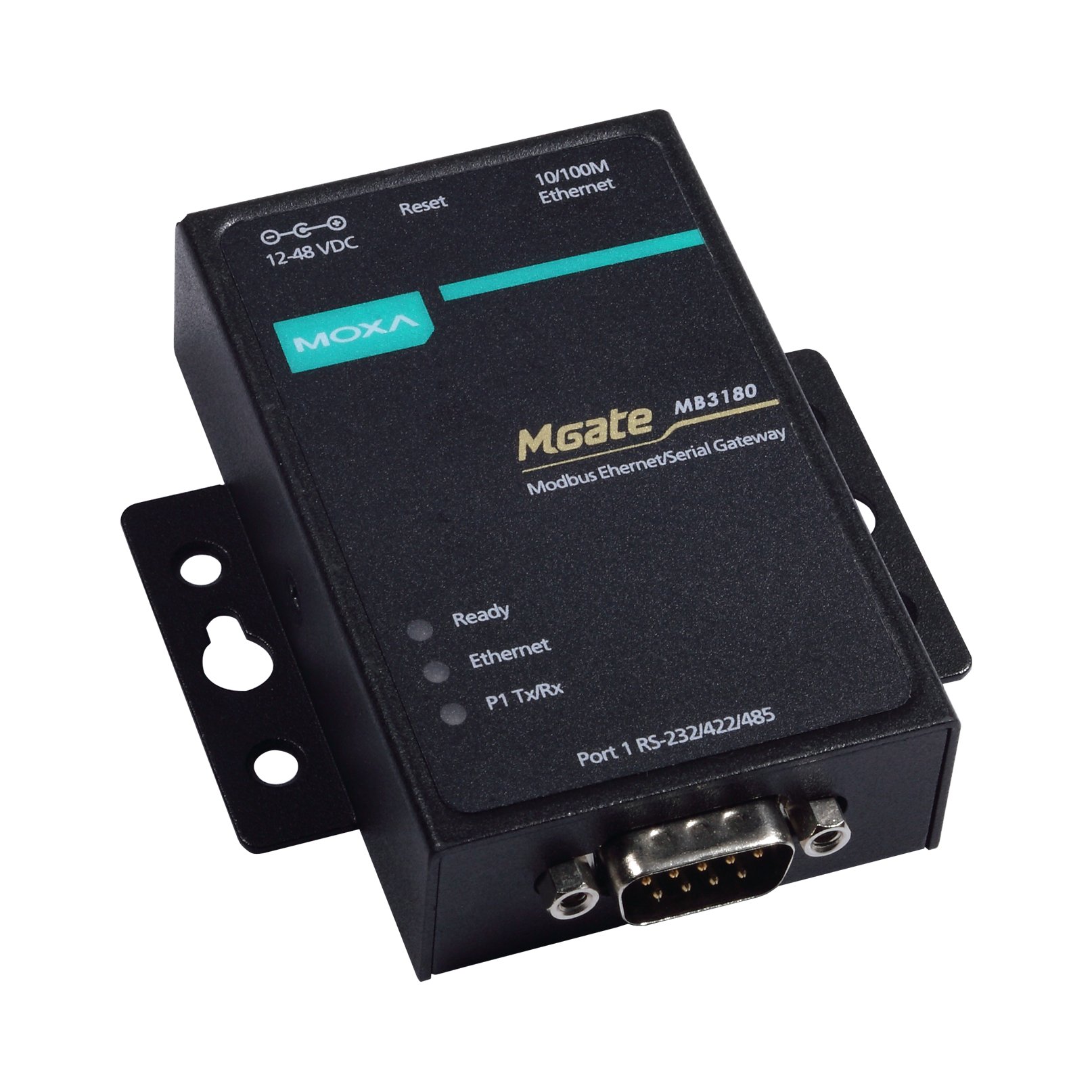

The MGate MB3180 from Moxa is a 1-port standard Modbus gateway.
Key specifications
| Product Type | Modbus TCP Gateways |
|---|---|
| Ethernet Protocols | Modbus TCP Client/Server |
| Serial Protocols | Modbus RTU/ASCII Master/Slave |
| Serial Ports | 1 |
| Serial Standards | RS-232/422/485 (software-selectable) |
| Serial Connector | DB9 male |
| 10/100BaseT(X) Ports (RJ45 connector) | 1 |
| Operating Temperature | 0 to 55°C |
| Input Voltage | 12 to 48 VDC |
Features and Benefits
- Supports Auto-Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Convert between Modbus TCP and Modbus RTU/ASCII
- 1 Ethernet port and 1, 2, or 4 RS-232/422/485 ports
- 16 simultaneous TCP masters with up to 32 simultaneous requests per master
- Easy hardware setup and configuration
