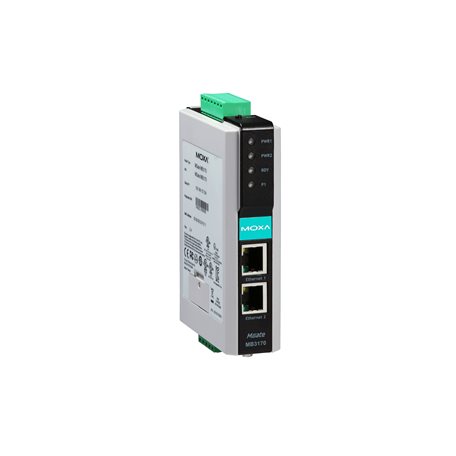

The Moxa MGate MB3170I is a 1-port advanced Modbus gateway with 2 kV isolation, 0 to 60°C operating temperature.
Key specifications
| Product Type | Modbus TCP Gateways |
|---|---|
| Ethernet Protocols | Modbus TCP Client/Server |
| Serial Protocols | Modbus RTU/ASCII Master/Slave |
| Serial Ports | 1 |
| Serial Standards | RS-232/422/485 (software selectable), 2 kV isolation |
| Serial Connector | DB9 male for RS-232 and terminal block for RS-422/485 |
| 10/100BaseT(X) Ports (RJ45 connector) | 2 (1 IP, Ethernet cascade) |
| Operating Temperature | 0 to 60°C |
| Input Voltage | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx, DNV |
Features and Benefits
- Certified with C1D2, ATEX, IECEx, and high level of EMS for harsh environments
- Supports Auto-Device Routing for easy configuration
- Supports route by TCP port or IP address for flexible deployment
- Accessible by up to 32 TCP master/client devices, or connect to up to 32 TCP slave/server devices
- Supports up to 31 or 62 serial slave devices
- Ethernet cascading for easy wiring
- Serial port routing by IP address, TCP port, or ID mapping
- Serial redirector function provided
- Embedded Modbus traffic monitor
