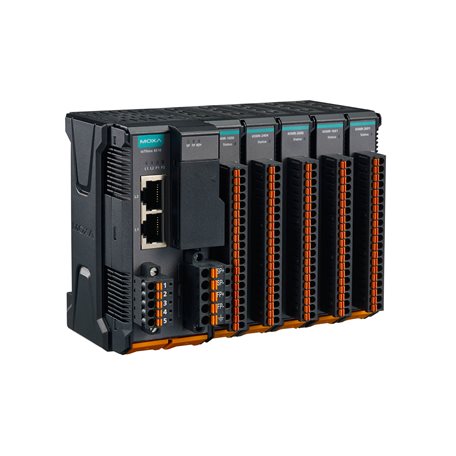

The ioThinx 4510 from Moxa is an advanced I/O, Ethernet network adapter, 3-in-1 serial port(s), -20 to 60°C operating temperature.
Key specifications
| Product Type | Advanced modular I/O, Ethernet network adapter |
|---|---|
| I/O Expansion | Up to 32 x 45MR I/O modules |
| Ethernet Ports | 2 x 10/100BaseT(X) RJ45 (Ethernet bypass) |
| Serial Ports | 1 x RS-232/422 or 2 x RS-485 (2 wire) (Spring-type Euroblock terminal) |
| Protocols | Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, MQTT, Modbus RTU Master |
| I/O Isolation | 3k VDC or 2k Vrms |
| Operating Temperature | -20 to 60°C |
| Power Input | 12 to 48 VDC (system); 12/24 VDC (field) |
| Certifications | ATEX, Class I Division 2, UL 61010-2-201 |
Features and Benefits
- Easy tool-free installation and removal
- Easy web configuration and reconfiguration
- Built-in Modbus RTU gateway function
- Supports Modbus/SNMP/RESTful API
- Supports up to 32 I/O modules
