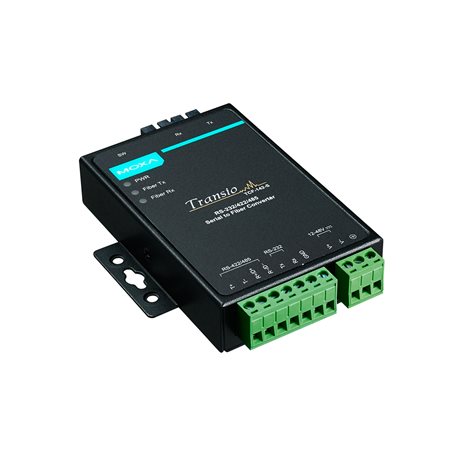

The TCF-142-S-SC-T from Moxa is a RS-232/422/485 to single-mode optical fiber media converter with fiber ring support and SC connector, -40 to 75°C operating temperature.
Key specifications
| Product Type | Serial-to-Fiber Converters |
|---|---|
| Conversion | RS-232/422/485 to fiber |
| Serial Standards | RS-232, RS-422, RS-485 |
| Serial Connector | 7-pin terminal block |
| Fiber | Single-mode SC, 1310 nm, 40 km typical |
| Baudrate | 50 bps to 921.6 kbps |
| Operating Temperature | -40 to 75°C |
| Power Input | 12 to 48 VDC |
Features and Benefits
- Ring and Point- to-Point transmission
- Extends RS-232/422/485 transmission up to:
- 40 km with single-mode TCF-142-S
- Decreases signal interference
- Protects against electrical interference and chemical corrosion
- Supports baudrates up to 921.6 kbps
- Wide temperature range models available (-40 to 75°C)
