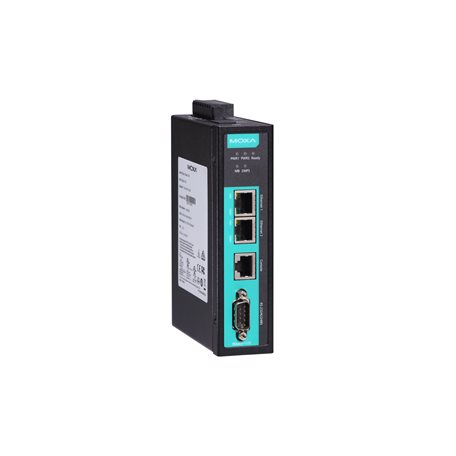

The MGate 5109-T from Moxa is a 1-port Modbus-to-DNP3 gateway, -40 to 75°C operating temperature.
Key specifications
| Product Type | Modbus TCP Gateways |
|---|---|
| Ethernet Protocols | Modbus TCP Client/Server, DNP3 TCP Master/Outstation |
| Serial Protocols | Modbus RTU/ASCII Master/Slave, DNP3 Serial Master/Outstation |
| Serial Ports | 1 |
| Serial Standards | RS-232/422/485, 2 kV isolation |
| Serial Connector | DB9 male |
| 10/100BaseT(X) Ports (RJ45 connector) | 2 |
| Operating Temperature | -40 to 75°C |
| Input Voltage | 12 to 48 VDC |
| Certifications | ATEX, Class I Division 2, IECEx |
Features and Benefits
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports DNP3 serial/TCP/UDP master and outstation (Level 2)
- DNP3 master mode supports up to 26600 points
- Supports time-synchronization through DNP3
- Effortless configuration via web-based wizard
- Built-in Ethernet cascading for easy wiring
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- microSD card for configuration backup/duplication and event logs
- Status monitoring and fault protection for easy maintenance
- Redundant dual DC power inputs and relay output
- -40 to 75°C wide operating temperature models available
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443
